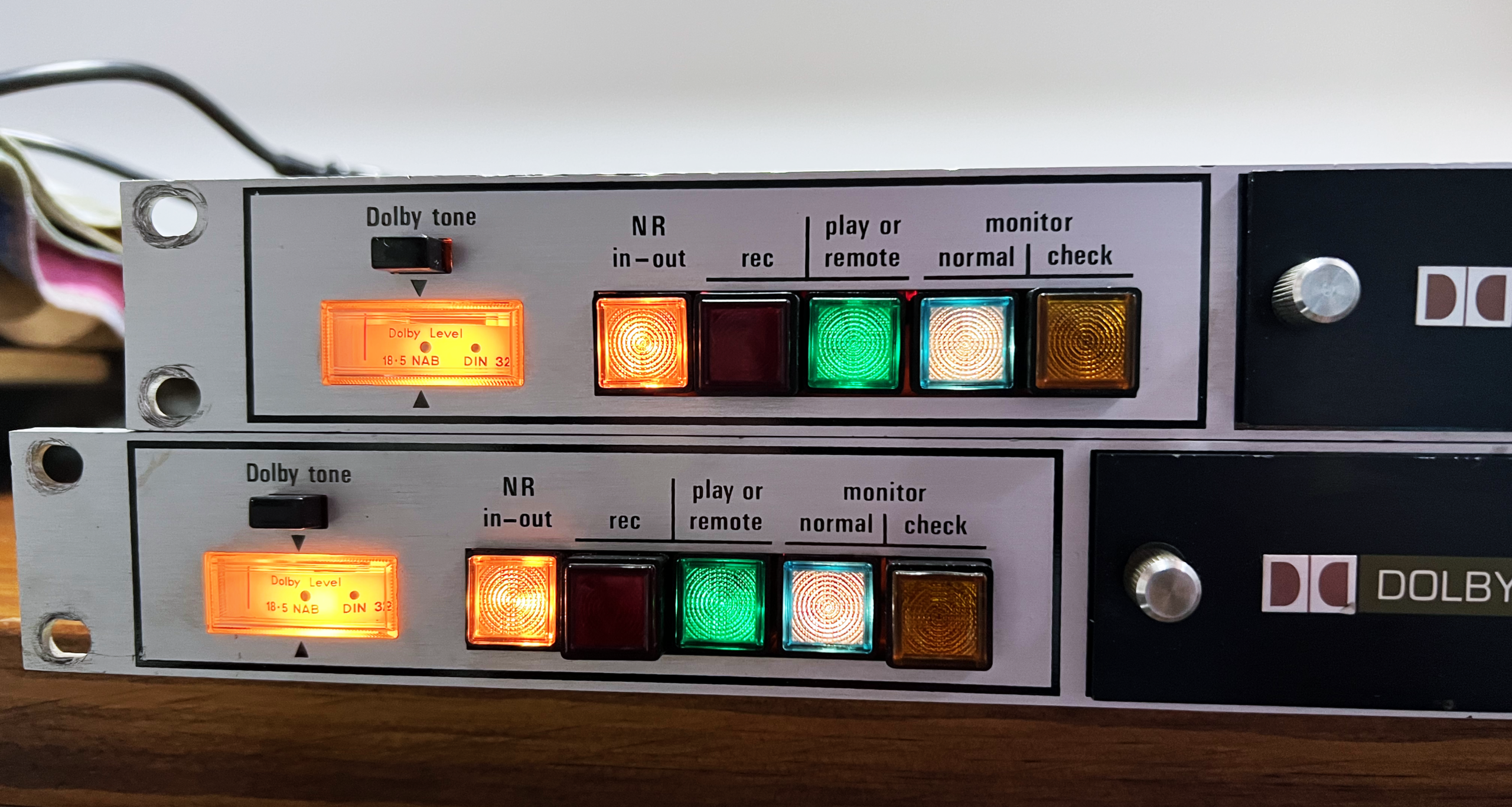

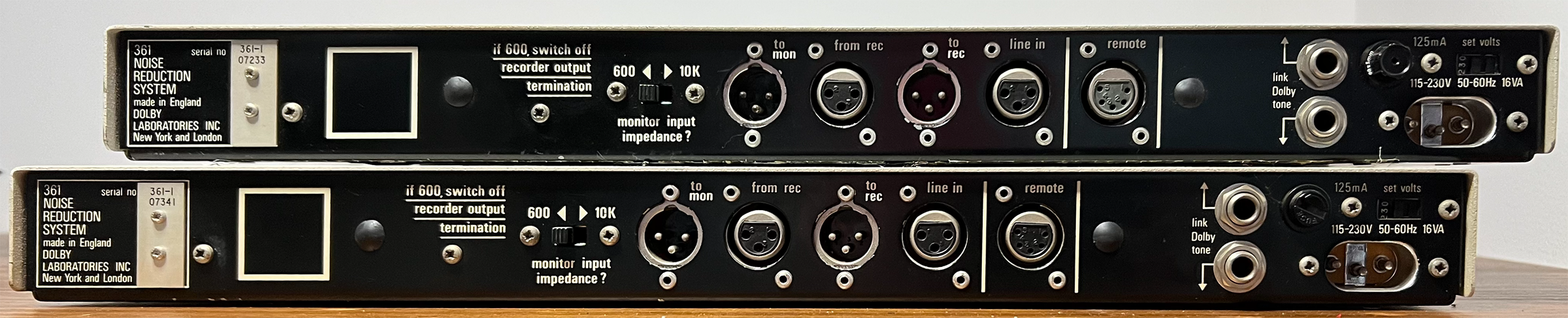

These legendary over-engineered units have been thoroughly tested (with Dolby NRM Cat.35A/B tester) and are fully operational. Balanced in/out with Sowter input and output transformers. Extremely clean units with minimal scratches (rack rash) on top and bottom from rack mounting. Front plate and back plate scratch-free with all lettering intact. No missing screws or washers.
Plug & Play ready. 100-130V / 200-260V. Original manual in binder. Hard-to-find (and expensive) PH-163 AC plugs incuded. No butchering of AC power sockets!
Included:

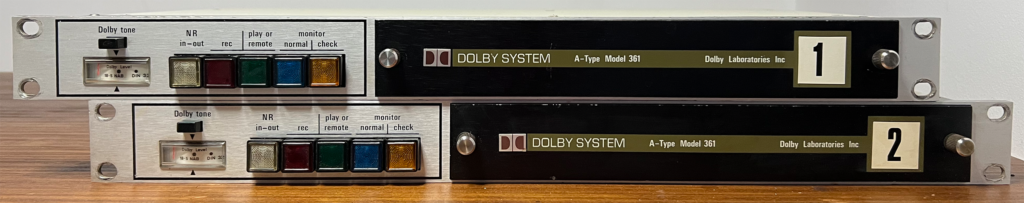

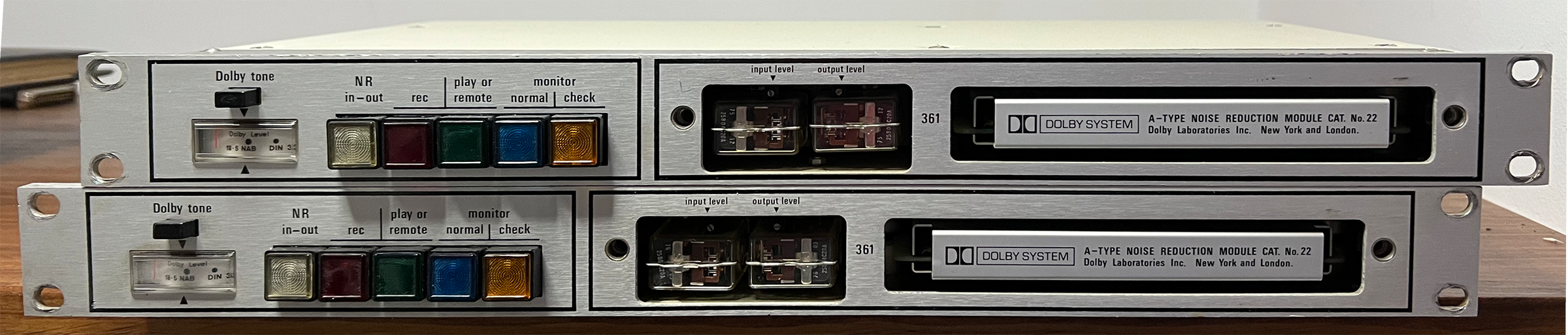

- (2) Dolby 361 units

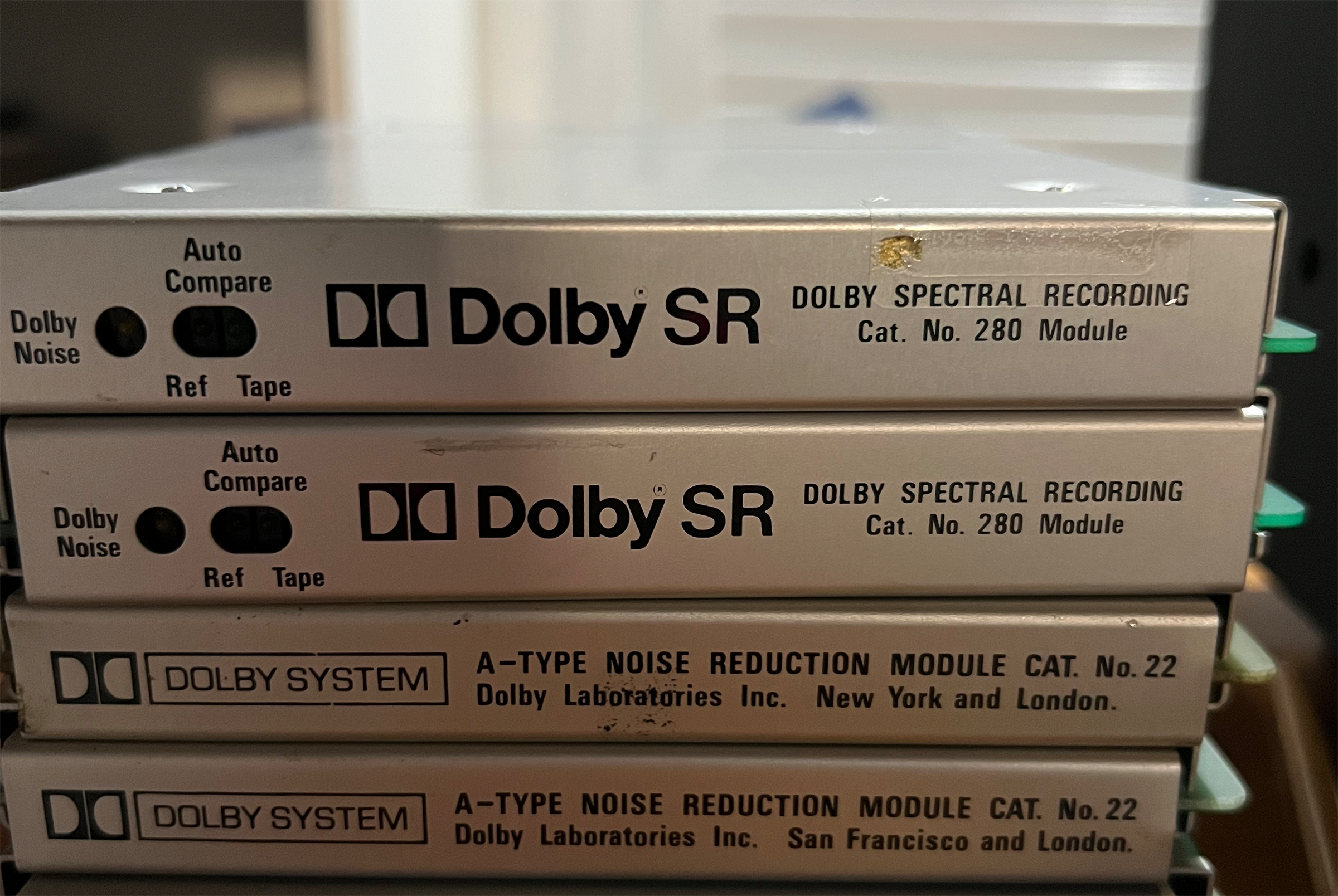

- (2) Dolby Cat.22 Dolby A modules
- (2) Dolby Cat.280 Dolby SR modules

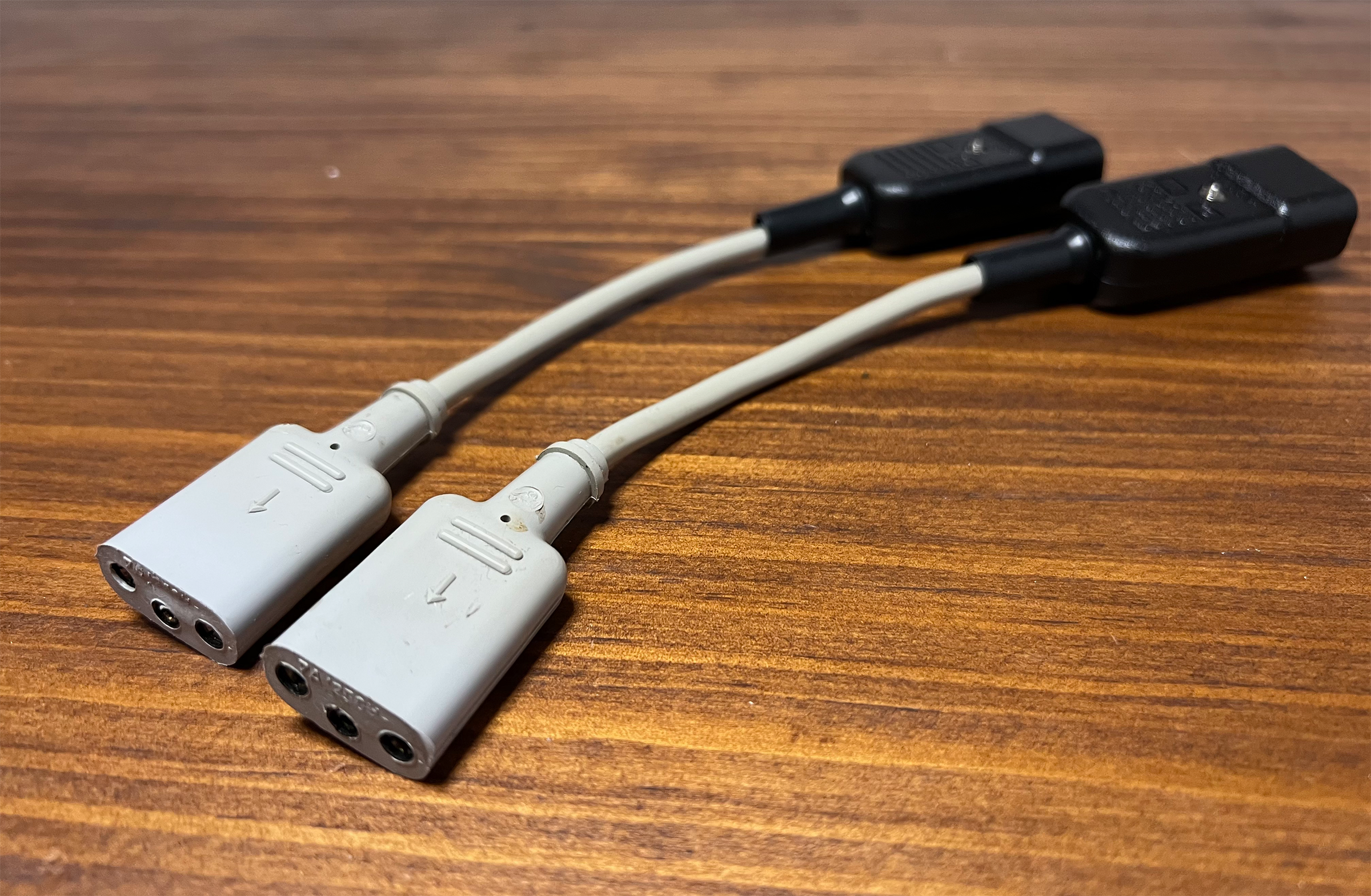

- (2) AC power cords (PH-163 female to IEC male pigtails + regular power cords US, UK or EU version)
- (2) XLR 5-pin male connectors for remote connection/operation
- (2) Osram 24-30V 30mA spare light bulbs for meter
- (2) Pauluslight 30V 40mA spare light bulbs for push button lights
- (8) Self-locking rack-mounting screws with nylon washers

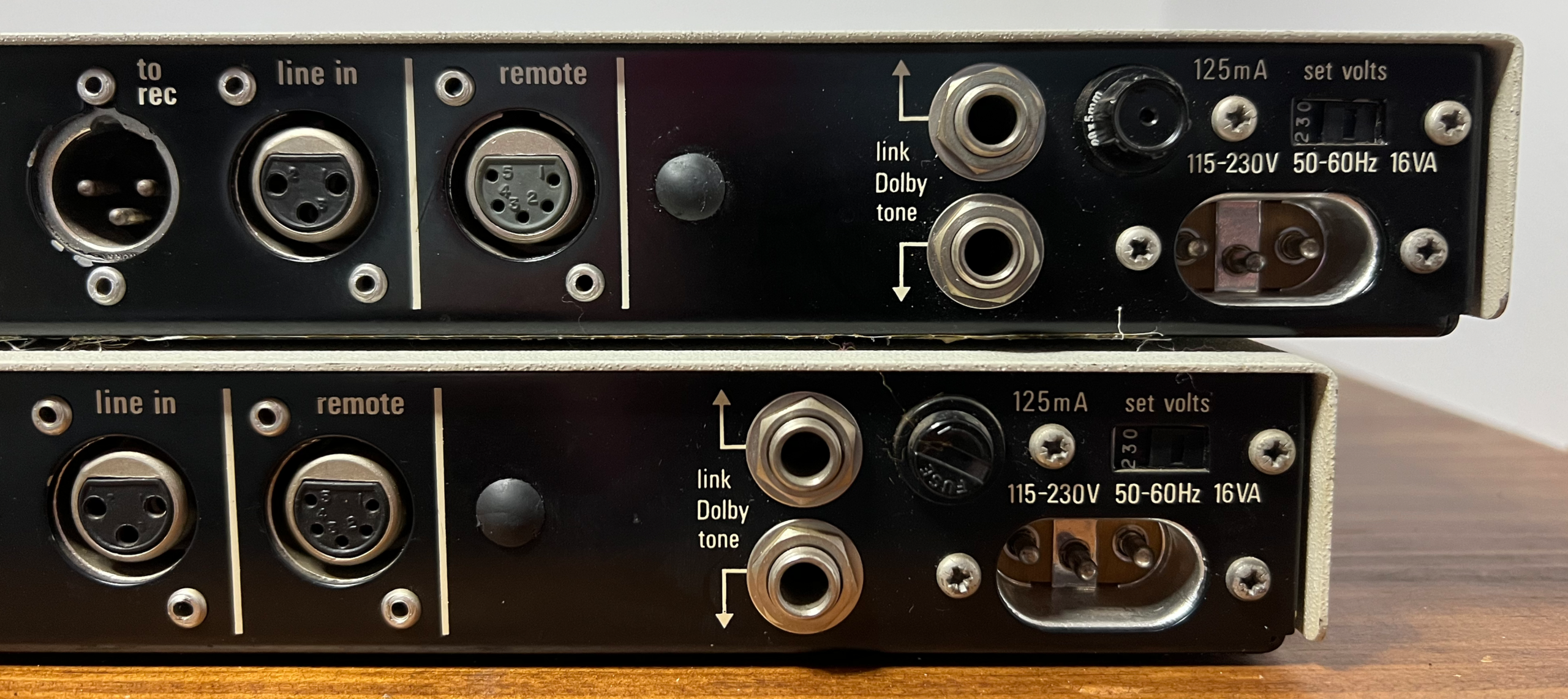

- (1) TS-TS Dolby tone interlink cable
Easily obtain a 10dB to 15dB improved signal-to-noise relation with the Cat.22 Dolby A card and to to 25dB noise reduction with the included Cat.280 Dolby SR (Spectral Recording) card for a dynamic range in excess of 90dB on most professional and prosumer reel-to-reel recorders.
Dolby Spectral Recording (SR) and Dolby A are considered far superior to DBX noise reduction without dulling recordings with a mask/veil.
The (2) Dolby Cat.22 included may be “modded” (aka vocal stressor)at the buyer’s request or add (1) “modded” Dolby Cat.22 cards for just €100.
Modding the encoder of Dolby A cards was a common practice in the 1960s and 70s to emphasize higher frequencies during recording tand thus add ‘air’ to vocals for a more transparent sound. The effect is accomplished by disabling two of the four compression bands: Band 1 (below 80Hz) and Band 2 (80Hz to 3kHz).
On Sale Now for €1,600
Free Shipping to EU, EFTA, CH & UK
Worldwide shipping at cost*
*) Excludes Russia & Belorussia
Key Specifications
| Input impedance (transformer balanced) | 10K Ohms floating |
| Output impedance (transformer balanced) | 20 Ohms |
| Minimum input Dolby level / DIN level | 350mV / 600mV |
| Maximum output level into 600 Ohms load | +21dBm |
| Frequency response | 30Hz to 20kHz +/-1dB |
| Harmonic distortion @ +8dBm | <0.2% over full bandwidth |
| Noise reduction with Cat.22 (A) module | -10dB (30Hz-5kHz) rising to -15dB at 15kHz |
| Overall noise level | 80dB below Dolby level over full bandwidth |
| Phase error | <5‘ over full bandwidth |
